380/500/630/700/800/870/1000/1250/1500/2000
Reinforced PP
Polyester/ PP(Polypropylene)/Nylon/Non-woven
0.8MPa-1.5MPa
Manual/Automatic
Chemicals, Wastewater Treatment, Mining, Foodstuff, Metallurgy, etc
| Quantity: | |
|---|---|
How It Works

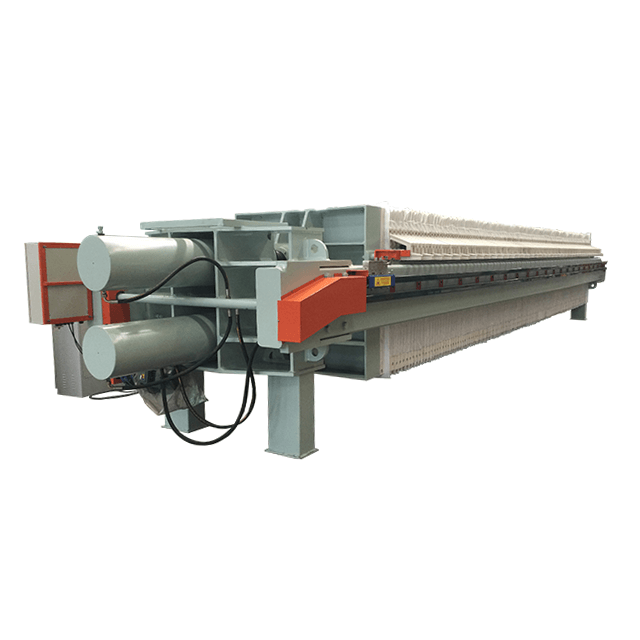

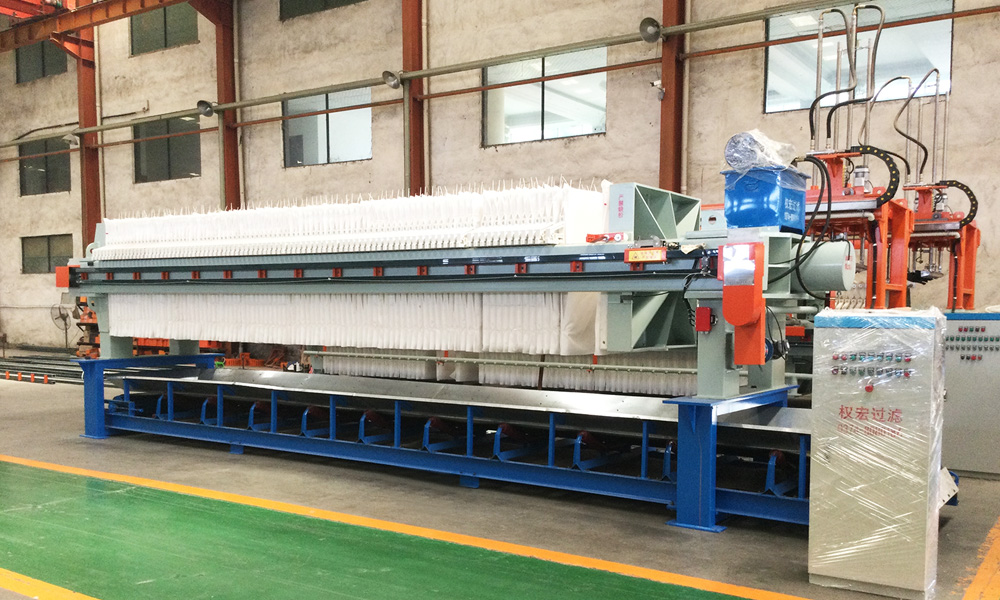

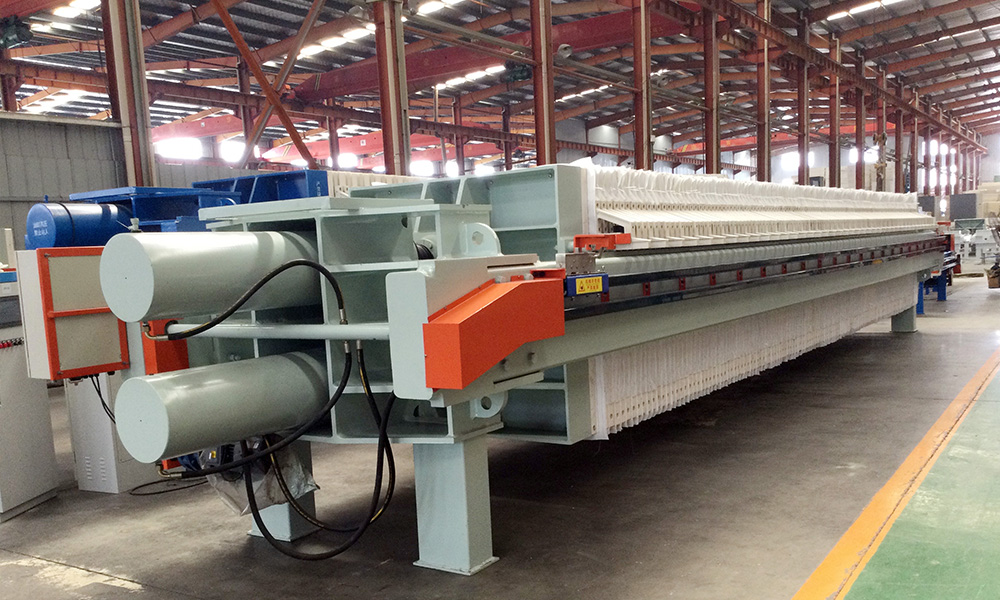

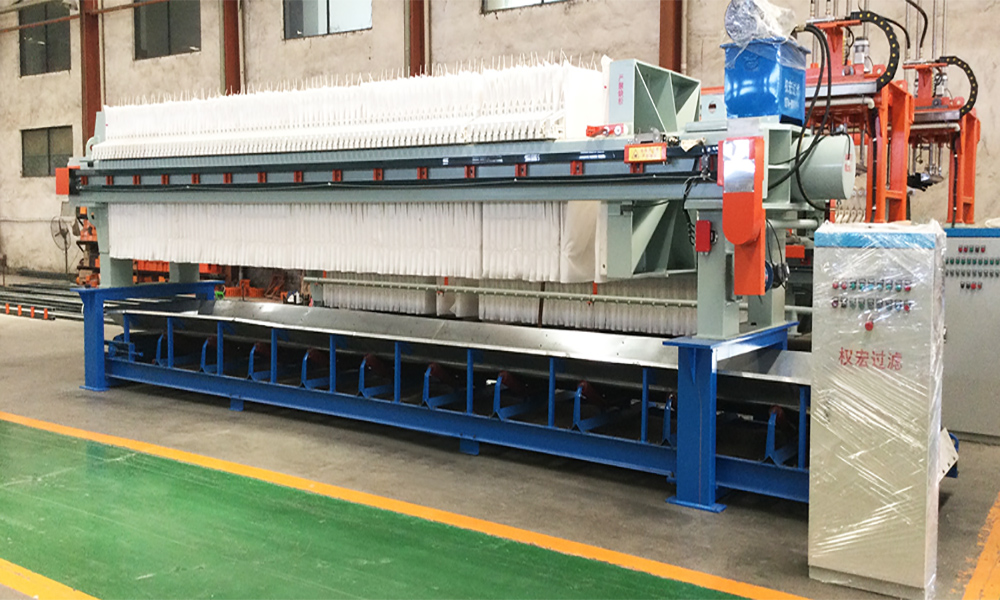

The automatic chamber filter press achieves solid-liquid separation based on the principle of pressure difference. The suspension to be filtered is pumped into the filter chambers, composed of filter plates and filter cloths. The two sides of the filter plate are concave, and two adjacent filter plates are combined to form a chamber. Under the action of pressure, the liquid passes through the filter cloth and is discharged through the drainage channels on the filter plate, while the solid particles are trapped in the filter chamber and gradually accumulate to form a filter cake. As the filtration proceeds, the filter cake continues to thicken. When the preset pressure or filtration time is reached, the feed is stopped. Then the filter plate pack will be opened for filter cake unloading. Now the filtration cycle is completed. The entire workflow is automatically managed by the PLC control system, which can realize unattended continuous operation.
Product Benefits
1.Large Processing Capacity
Our filter plates max can be 2000mm series with 1000m2 filtering area. Besides that, the optimized filter chamber layout combined with strong feeding power can complete the filtration and separation of a large amount in a short time. It can easily meet the industrial filtration needs in large-scale production and greatly improve production efficiency.
2. High Degree of Automation
The advanced PLC control system can realize the automatic operation of feeding, filtering, cake unloading, drip tray, cake blow, etc. The operation is simple and convenient. Especially with the automatic filter cloth cleaning function, the operation efficiency can be further improved.
3. Wide Range of Applications
It is suitable for solid-liquid separation in various industries, such as chemicals, sludge dewatering, oils, sugar refinery, mineral tailings, and so on. It can handle materials of different properties, with strong adaptability and versatility.
4. The Filter Plates are Durable

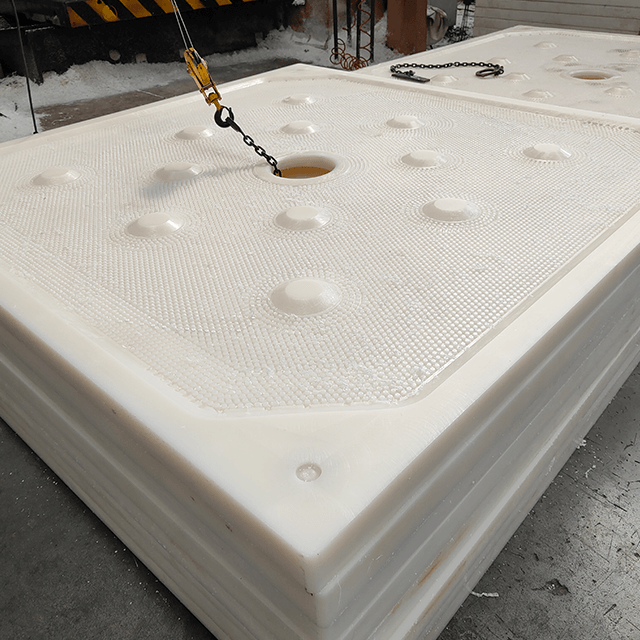

The solid filter plate is made of high-strength reinforced PP, which has excellent compression resistance, corrosion resistance and wear resistance. It is not easy to break, has a long service life, and reduces equipment maintenance costs.
5. Strong Ability to Withstand Pressure

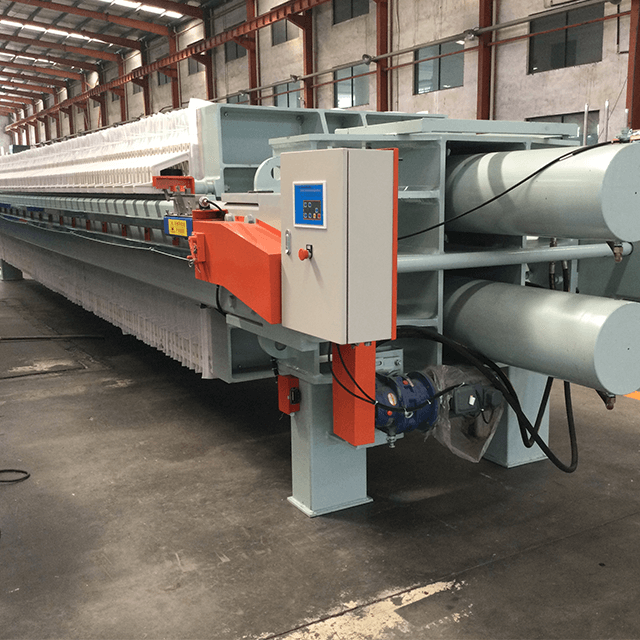

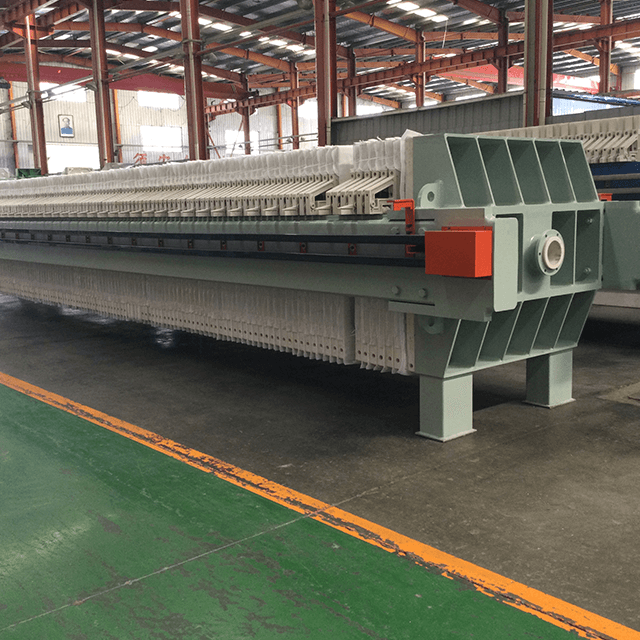

Besides the good quality filter plates, our frame structure is made of high-quality carbon steel. It has a good strength and is processed by sandblasting to ensure quality. Additionally, our hydraulic system normally adopts bigger and heavier cylinders to ensure enough closing pressure.
Application
1.Chemical Industry
In the chemical production process, a large number of solid-liquid separation operations are involved, such as: Pigment & Dyes, Hydroxide (aluminum hydroxide), Salts (carbonates, sulfates, etc.), Electrolyte, Fertilizer, catalyst recovery, mother liquor filtration, chemicals' purification, etc.
2.Wastewater Treatment
The automatic chamber filter press is an important equipment for industrial wastewater sludge dewatering. After dewatering, the water can be recycled and dried solid filter cakes are convenient for subsequent transportation, landfill: stone cutting wastewater, mining wastewater, glass wastewater, paint wastewater, ink wastewater, electroplating wastewater, metallurgical wastewater, etc.
3.Mining Industry
A large amount of tailings and ore pulp will be generated during mining and mineral processing, which requires solid-liquid separation. The automatic chamber filter press can efficiently dewater various mine slurries: coal sludge, kaolin, iron tailings, silver tailing, aggregate sludge, etc.
4.Food Industry
In the process of food production, many products also need our filter press for filtration, such as starch, sugar, oil, beer, wine, sake making, seasoning, yeast, and so on. Those materials need to be filtered and purified to ensure product quality. The automatic chamber filter press has the characteristics of a high hygiene level and high filtration accuracy, which can meet the strict requirements of the food industry.
5. Others
Actually, our chamber filter press has more applications than you thought, such as pharmacy, acetylene sludge, ect. It’s more than your expectations.
Why Choose Quanhong
1. Expert R&D Team
Our skilled R&D team specializes in automatic chamber filter presses, continuously innovating to deliver high-performance, reliable equipment.
2.Rigorous Quality Control
We adhere to international quality standards, ensuring strict quality checks from raw materials to assembly for durable, high-quality machines.
3.Customized Solutions
We tailor equipment to your specific needs, offering personalized design, installation, and support for seamless integration into your production.
4.Comprehensive After-Sales Service
Our efficient after-sales team provides training, remote support, and on-site maintenance to keep your operations running smoothly.
Choosing Quanhong automatic chamber filter press means choosing an efficient, intelligent, and reliable solid-liquid separation solution, which will make your production process smoother and create greater value for your company. If you are interested in our products or have any questions, please feel free to contact us. We will serve you wholeheartedly!
