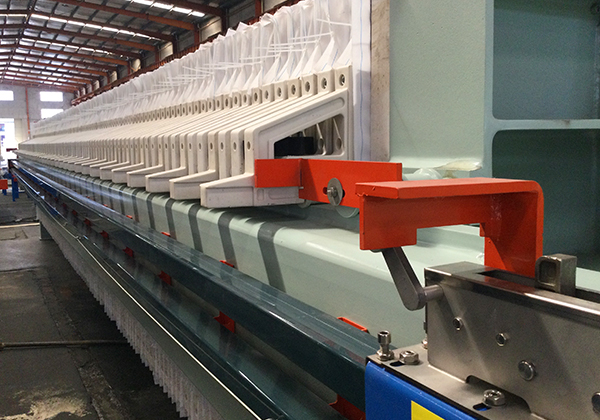

Guide to Cleaning Bearings and Filter Plates in Chamber Filter Press

As a core piece of machine for industrial solid-liquid separation, the long-term, stable operation of a chamber filter press relies heavily on meticulous daily maintenance and upkeep. After prolonged periods of high-intensity operation, critical components of the machine are prone to accumulating dirt and grime. This article provides a detailed guide on how to properly clean a chamber filter press—specifically focusing on the two core components: bearings and filter plates—to help you extend the machine's service life and minimize downtime costs.

Cleaning the Bearings of the Chamber Filter Press

Bearings are critical transmission components that support the filter press during its high-pressure operation. The cleaning process is divided into two stages: "rough cleaning" and "fine cleaning." During the procedure, it is recommended to place a metal mesh rack at the bottom of the cleaning container to prevent the bearings from coming into direct contact with impurities at the bottom, thereby avoiding secondary contamination.

Rough Cleaning Stage:The primary objective here is to remove old grease or stubborn deposits from the bearing surfaces. A soft-bristled brush may be used for scrubbing; however, it is crucial not to rotate the bearing while it is submerged in the cleaning fluid. Doing so could cause residual fine particles to damage the bearing's rolling surfaces, leading to irreversible wear.

Fine Cleaning Stage: During this stage, the bearing should be rotated slowly and carefully inspected—paying close attention to every raceway and rolling element—to ensure that no contaminants remain. The entire process must be thorough to avoid overlooking any hard-to-reach areas.

Typically, we recommend using a neutral cleaning agent that is free of water, diesel, or kerosene. Depending on specific operating conditions, a mild alkaline solution may also be used. Regardless of the cleaning agent chosen, it should be filtered periodically and kept clean to prevent secondary contamination. Immediately after cleaning, apply a rust-inhibiting oil or grease to the bearing surfaces; this is a critical step in enhancing the bearing's wear resistance and extending its service life.

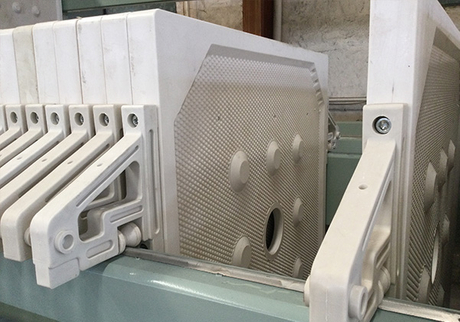

Cleaning the Filter Plates of the Chamber Filter Press

The filtration chamber of a chamber filter press is formed by assembling multiple filter plates; therefore, cleaning the filtration chamber requires cleaning each filter plate individually. To perform this task, first retract the thrust plate, then sequentially loosen the filter plates to remove the filter cake from each one.

The primary focus of the cleaning process is to thoroughly unclog the drainage holes located on the filter plates. If filtrate is allowed to dry and accumulate in these critical areas over time, it can easily form hard blockages. In mild cases, this reduces filtration efficiency; in severe cases, it can lead to cracking and structural damage to the filter plates. We recommend using specialized tools or compressed air to individually verify that all drainage ports remain unobstructed.

Regular and proper cleaning ensures that your chamber filter press consistently operates at peak filtration efficiency. As a professional  filter press manufacturer, Quanhong Filtration provides not only high-quality filtration machine but also comprehensive after-sales technical support. Should you encounter any operational or maintenance-related questions during the operation of your machine, please do not hesitate to contact our after-sales engineers; we are dedicated to serving you.
