Application of High-temperature Chamber Filter Presses in Sodium Silicate Production

Sodium silicate, also known as water glass, is a vital chemical raw material widely used in sectors such as construction, papermaking, textiles, and refractory materials. Regardless of whether the dry or wet production process is employed, the resulting sodium silicate solution contains significant amounts of unreacted solid residues and impurities; efficient filtration is essential to obtain a clear, transparent, and compliant product. In this critical stage, the high-temperature chamber filter press has become a key piece of solid-liquid separation machine, thanks to its excellent temperature resistance and stable filtration efficiency.

Why is a Filter Press Needed for Sodium Silicate Production

During production, solid sodium silicate is dissolved in water to form the solution. Since the reaction of raw materials rarely achieves 100% conversion, a certain amount of insoluble matter inevitably remains in the solution. Failure to remove these impurities promptly not only compromises the solution's clarity and product quality but also interferes with subsequent processes such as concentration, storage, and end-use. The filter press utilizes filtration chambers formed by filter plates and cloths; through pressure filtration, solid particles are trapped within the chambers while the filtered sodium silicate solution is discharged as filtrate, thereby achieving efficient solid-liquid separation.

Why is the High-Temperature Chamber Filter Press Recommended

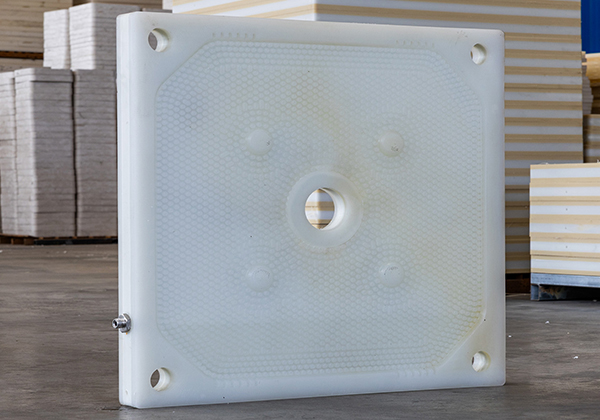

First, it utilizes high-temperature-resistant modified polypropylene (PP) filter plates capable of stably handling materials at temperatures exceeding 100°C. High temperatures effectively reduce the viscosity of the sodium silicate solution, preventing crystallization caused by cooling—which could otherwise clog the filter cloth—and significantly increasing the filtration rate.

Second, it offers high-pressure feeding and filtration capabilities, easily overcoming the resistance posed by high-viscosity media. This ensures the filtrate meets industrial clarity standards and produces filter cakes with excellent dryness, thereby boosting efficiency and shortening production cycles.

Third, the filter cloth selection is flexible; the optimal pore size can be matched to the high-viscosity characteristics of sodium silicate, balancing filtration precision with throughput.

Fourth, the machine features a large filtration area, high processing capacity, stable operation, and ease of maintenance. It can be customized with varying filtration areas and automation configurations to suit specific production scales and meet the diverse needs of different customers.

Our high-temperature chamber filter presses have been successfully deployed by numerous manufacturers of water glass (sodium silicate). Thanks to their exceptional heat resistance and consistent filtration efficiency, they enable clients to achieve highly effective solid-liquid separation. If you are looking for a high-temperature chamber filter press suitable for water glass production, please contact Quanhong Filtration for a customized solution and quote.
