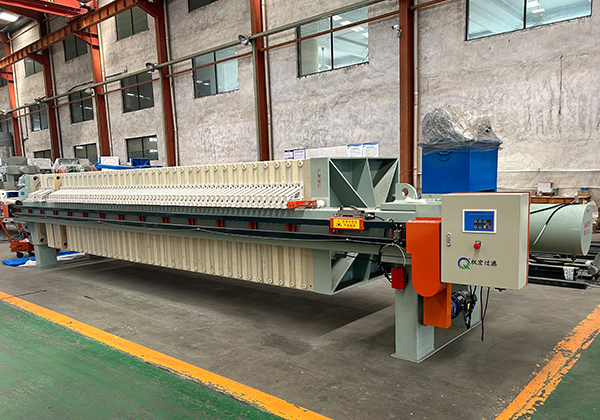

Application of Filter Presses in Salt Mud Dewatering

Caustic soda (sodium hydroxide) is a vital basic chemical product typically manufactured via the chlor-alkali process. After raw salt is dissolved and the brine is purified—a step necessary to remove impurities like calcium and magnesium and ensure the stable operation of ion-exchange membrane electrolysis—a salt mud slurry containing solids such as calcium carbonate and magnesium hydroxide is generated. Due to the high moisture content of this salt mud, improper handling can lead to increased salt consumption and higher solid waste disposal costs. As a key piece of industrial solid-liquid separation machine, the filter press is well-suited for dewatering salt mud in caustic soda production, effectively separating solids from liquids and reducing the moisture content of the filter cake.

Why Filter Presses are Suitable for Salt Mud Dewatering

Caustic soda salt mud is characterized by fine particles, high viscosity, strong alkalinity, and high salt content; conventional filtration machine often struggles with issues such as clogging and poor dewatering performance. Filter presses operate on the principle of pressure filtration, utilizing filter plates and cloths to form filtration chambers. When the salt mud slurry enters, liquid is forced through the filter cloth under pressure, while solid particles are retained to form a filter cake, thereby achieving efficient solid-liquid separation and dewatering.

Furthermore, filter presses offer great material adaptability. Filtration pressure, cycle time, filter cloth material, and chamber volume can all be adjusted based on the specific properties of the salt mud and the required processing capacity, allowing the machine to effectively handle varying scales of brine purification and salt mud dewatering operations.

Advantages of Using Filter Presses for Salt Mud Filtration

1. Deep Dewatering to Reduce Filter Cake Moisture Content

Standard chamber filter presses can meet routine salt mud dewatering requirements. For projects demanding lower filter cake moisture content, membrane filter presses can be employed. Following filtration, the cake undergoes further squeezing using a high-pressure medium, combined with compressed air drying; this process significantly lowers moisture content, resulting in a drier cake that is easier to transport and dispose of.

2. Filter Cake Washing to Facilitate Residual Salt Recovery

Filter presses can be equipped with a through-washing system, allowing the filter cake to be washed during the dewatering process to reduce residual salt content. The filtrate can be recycled into the salt dissolution system in accordance with process requirements, helping to reduce salt consumption and improve resource utilization efficiency.

3. Corrosion Resistance and Suitability for Strong-alkali Operating Conditions

To withstand the high-salt, high-alkali, and saline-mist environments typical of caustic soda production, the filter press can be equipped with modified reinforced polypropylene filter plates, offering great temperature and alkali resistance. The frame can be clad with 304 or 316L stainless steel to provide an anti-corrosion layer, thereby enhancing the machine's long-term operational stability.

4. Automated Operation to Reduce Labor Costs

The filter press can be configured with a PLC control system, an automatic plate-shifting mechanism, and a high-pressure filter cloth washing system. This enables automation across filtration, cake discharge, and cloth cleaning stages, reducing manual labor and meeting the continuous operation requirements of large-scale caustic soda production lines.

As an experienced international supplier of filter presses, Quanhong Filtration specializes in providing high-quality salt mud dewatering machine and customized system solutions to global chlor-alkali and caustic soda producers. Whether you are establishing a new production line or upgrading existing equipment, our engineering team can provide cost-effective filtration solutions tailored to your specific processing capacity and process requirements.
