How the Fast Open Device Works
1.Filter Plate Grouping Design

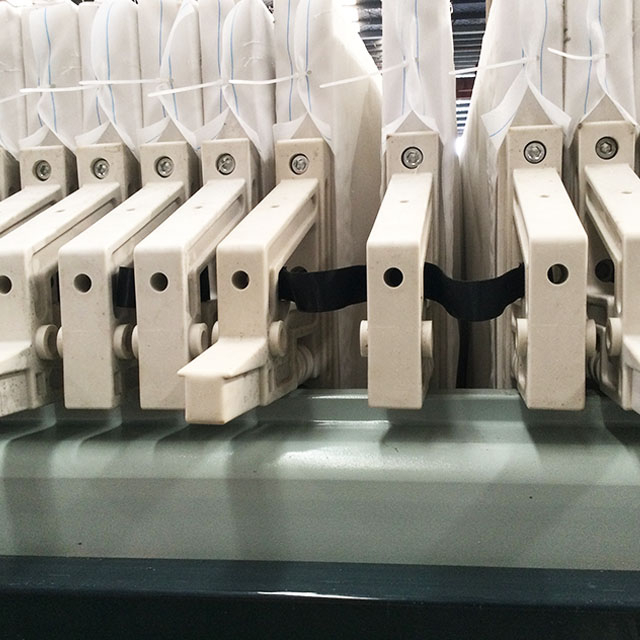

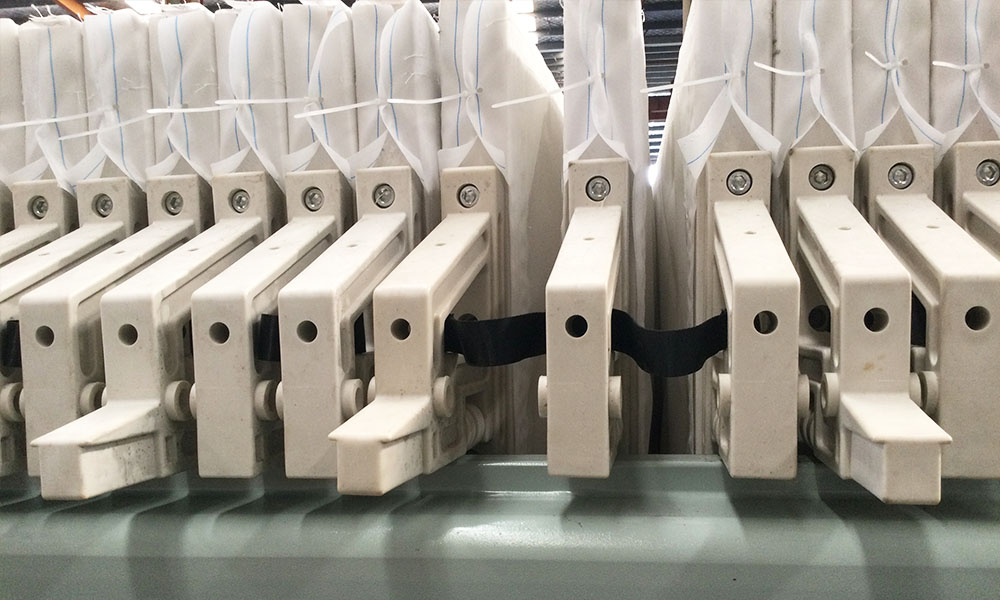

Filter plates are divided into groups of a fixed number (3 or 5). Each group is mechanically linked by connectors (such as chains or pull rods) to form a synchronized unit. A certain gap is left between groups to ensure they do not interfere with each other during opening.
2. Drive Device Drives the Active Group

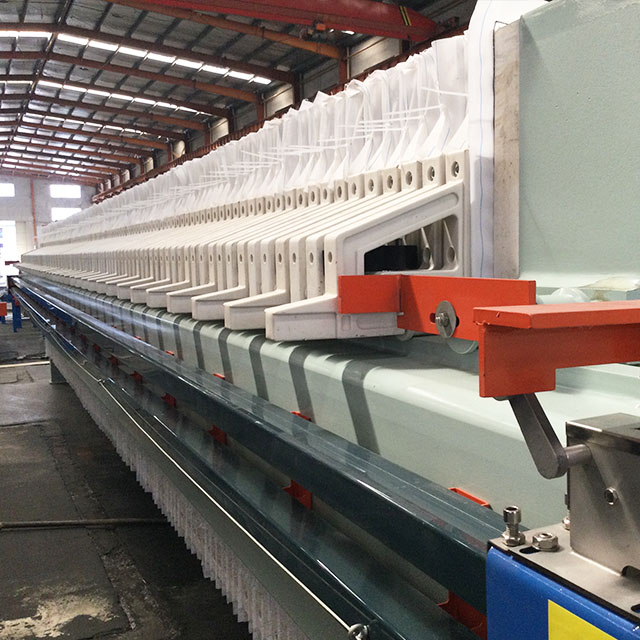

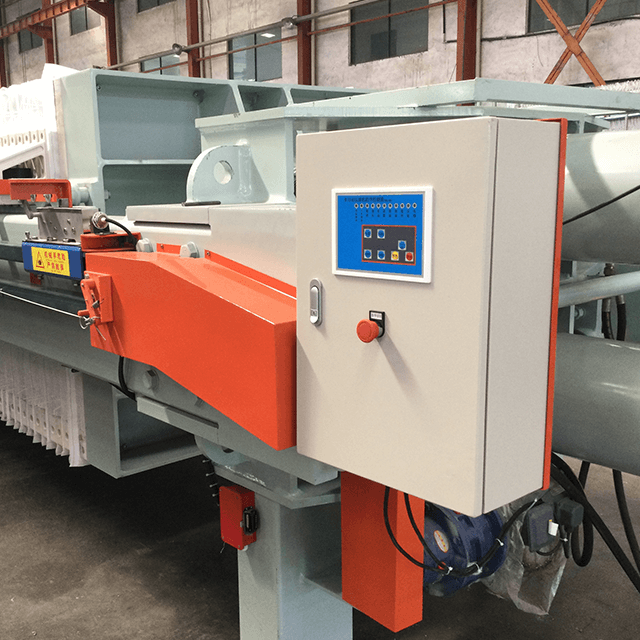

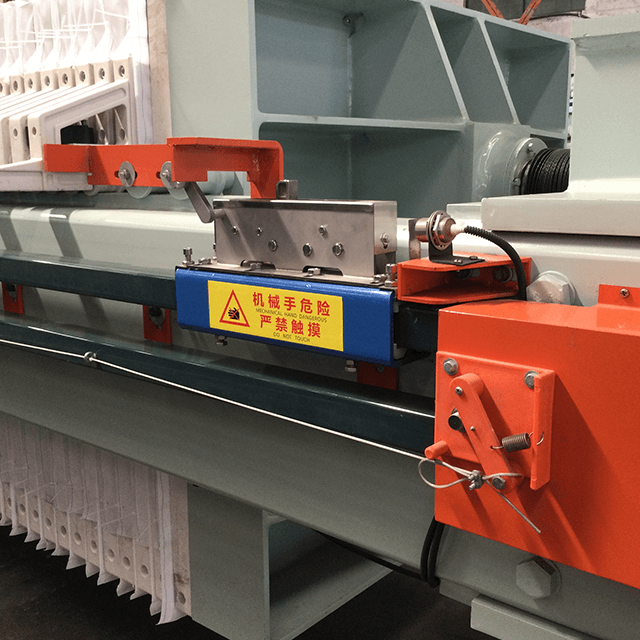

The fast open device is powered by a hydraulic cylinder, electric motor, or hydraulic motor, which drives the "active component" (such as a main pull rod or drive chain). The active component is connected to the first group of filter plates. When the active component is activated, it first pulls the first group of filter plates.
3.Linkage Mechanism Transmits Tension
When the first group of filter plates is opened to the set position, the fork or stop at its end triggers the connector of the second group of filter plates, transferring the tension to the second group. Similarly, the second group drives the third group ("1 pulls 3") or, in sequence, the fifth group ("1 pulls 5"), achieving the synchronized opening of multiple groups of filter plates.
4. Limit and Reset Control
The distance between each set of filter plates is controlled by limit switches or mechanical stops, ensuring consistent separation for easy cake unloading. After cake unloading, the device reverses its motion, re-compacting the filter plates and preparing for the next filtration cycle.
Main Benefits
1.Greatly Shortened Discharge Time
This is the most immediate and significant benefit. The fast open system automatically separates a group(usually 3 to 5 plates) of filter plates in a very short time, allowing the filter cake to drop simultaneously. Compared to the traditional method of pulling the plates one by one, this can reduce discharge time from several minutes or even more than ten minutes to less than one minute.
2.Improved Productivity
By shortening discharge time, the equipment can enter the next filtration cycle more quickly. This means the filter press can process more material in the same amount of time, significantly increasing production capacity. This is crucial for industries requiring continuous production or handling large quantities of material.
3.Reduced Manual Operation and Labor Intensity
The fast open device is highly automated, requiring virtually no human intervention. This not only reduces physical labor for operators but also mitigates safety risks associated with improper operation.
4.Increased Automation
The fast open device is a key component in achieving automated filter press operation. It can work in conjunction with other automated features such as plate shaking device, filter cloth washing system, and a drip tray to create an efficient, unmanned filtration production line.
In summary, the fast open device is a crucial upgrade for modern filter presses, particularly suitable for companies that demand high production efficiency, a high degree of automation, and reduced labor costs.
